Dolphin - Pull STud / Edge Finder / Z setter

Pull Studs - Regular / Through Coolant

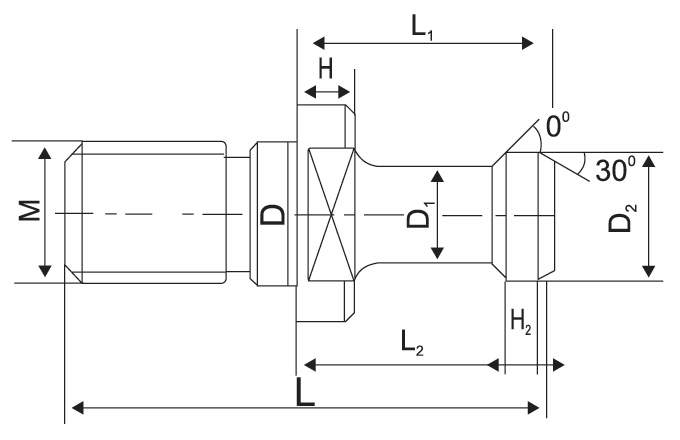

DOLPHIN Pull Studs, made from high grade steel and heat treated, to provide robust support to the Adaptors and machine spindle. DOLPHIN pull studs are available in DIN, ISO, MAS, CAT, MAZAK, series.

Model	L	L1	L2	D	D1	D2	H	H1	M	θ
BT30 [θ]	43	23	18	12.5	7	11	5	2.5	M12	45	60	90
BT40 [θ]	60	35	28	17	100	15	6	3	M16	45	60	90
BT50 [θ]	85	45	35	25	17	23	10	5	M24	45	60	90

Download PDF

Edge Finders with Sound & Light

DOLPHIN optical Edge finder, are provided with Light plus sound output, when the Touch probe makes contact with the Job Surface.

Model	D(mm)	L(mm)	D(mm)	Wt.
ES-20	20	160	10	0.28

Download PDF

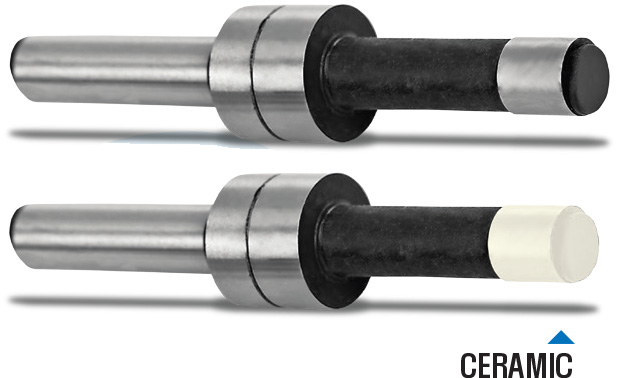

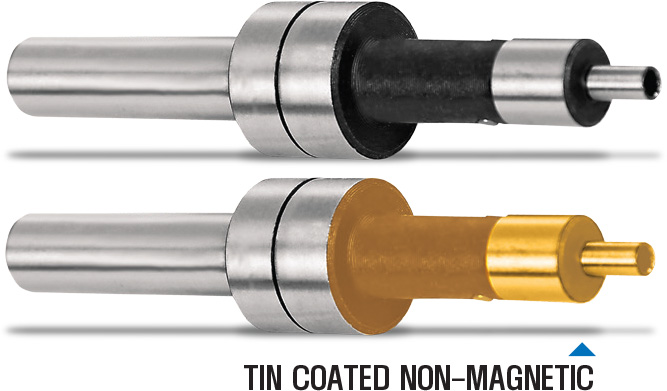

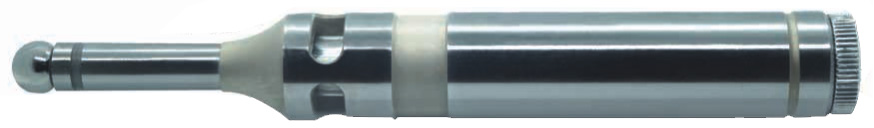

Mechanical Edge Finders (Steel/Ceramic/Tin Coated)

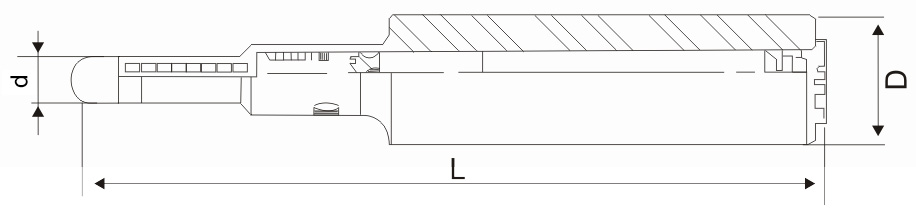

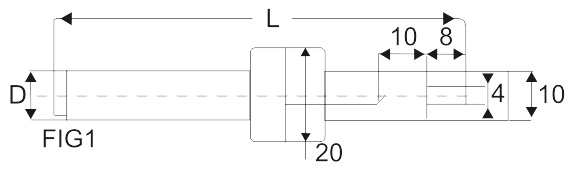

Mechanical Edge Finders (Steel) - Diagram

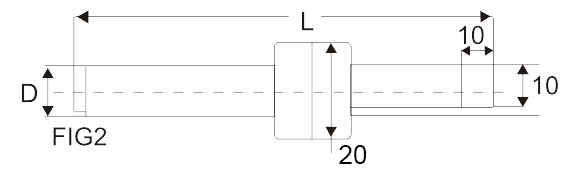

Mechanical Edge Finders (Ceramic) - Diagram

DOLPHIN mechanical Edge finders assist in indicating Job machining at the contours, when the Edge finder spindle displays run out when it makes contact with the Job surface.

Model	D(mm)	L1
4mm	4	90
10mm	10	83

Download PDF

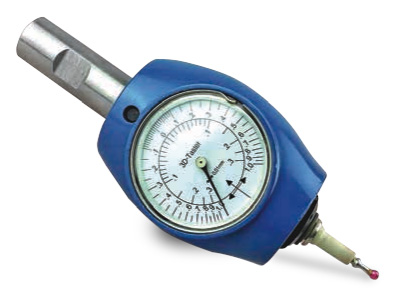

3D-Taster / 3D Edge Finder

DOLPHIN 3D taster, helps locate Zero point in X,Y,Z axis. Precise and Effortless calipering of work pieces, with Generous Over run allowances to prevent stylus damage.

Axis	Shank Dia	Accuracy	Stylus
X, Y, Z	20mm	0.01mm	33mm LX 4mm Dia

Download PDF

Centering Indicator

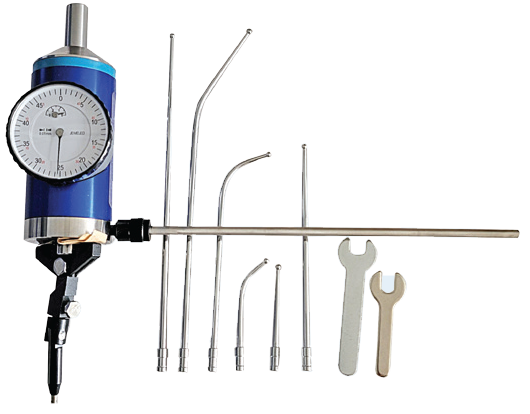

DOLPHIN Centering Indicator provides accurate center setting, on Internal or External, Vertical or Horizontal machining operations.

Range	Accuracy
0-3 MM	0.01MM

Download PDF

Z - Axis Scale Zero Setters with Magnetic base

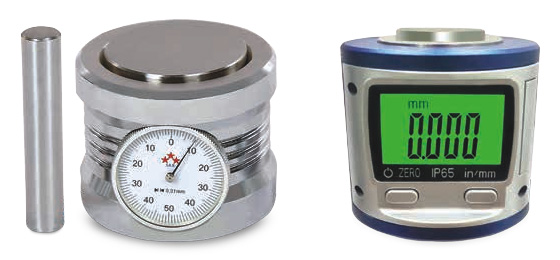

DOLPHIN Z Axis Setter ensures accurate Zero setting for the Machining Job offset. With a height of 50 mm and Magnetic base, Z axis setter provides accurate tool offset.

Model	Gross Attitude
DIAL TYPE ( 0.01MM )	50MM
DIGITAL (0.001 MM) IP 65 SERIES	50MM

Download PDF

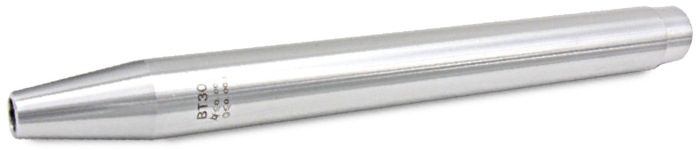

Master Mandrel (Spindle Tester)

DOLPHIN Spindle tester provides, VMC machine spindle run out in 3 micron accuracy.

Co-centricity 0.003mm

Range
BT40 Dia 40mm - 300mm Long
BT50 Dia 50mm - 300mm Long

Download PDF
