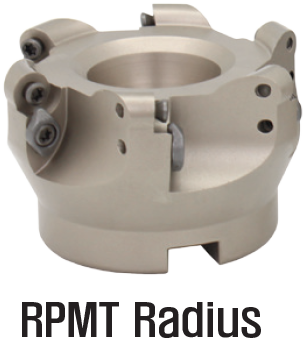

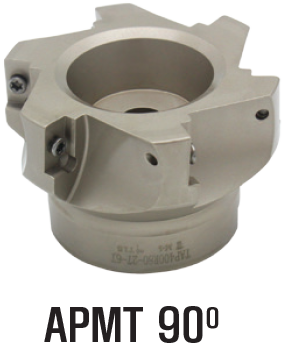

Indexable Face Mill Cutters

DOLPHIN Indexable Face Mill Cutter are suited to variety of Carbide inserts AMPT / RPMT / TPKN / LNMU / R 390 series, in Bore type (Diameter 50mm to 250mm ) and shank type 10 mm to 40 mm diameter.

DIA	BORE	Z	INSERT		KEY	SCREW	KEY
DIA	BORE	Z	APMT	SCREW	KEY	SCREW	KEY
50	22	4	1604	1204	T-15	M 4 X 10	T-15
63	22	5	1604	1204	T-15	M 4 X 10	T-15
80	27	6	1604	1204	T-15	M 4 X 10	T-15
100	32	6	1604	1204	T-15	M 4 X 10	T-15
125	40	6	1604	1204	T-15	M 4 X 10	T-15
160	40	9	1604	1204	T-15	M 4 X 10	T-15
200	60	12	1604	1204	T-15	M 4 X 10	T-15
250	60	12	1604	1204	T-15	M 4 X 10	T-15

Download PDF

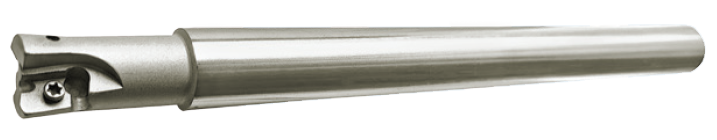

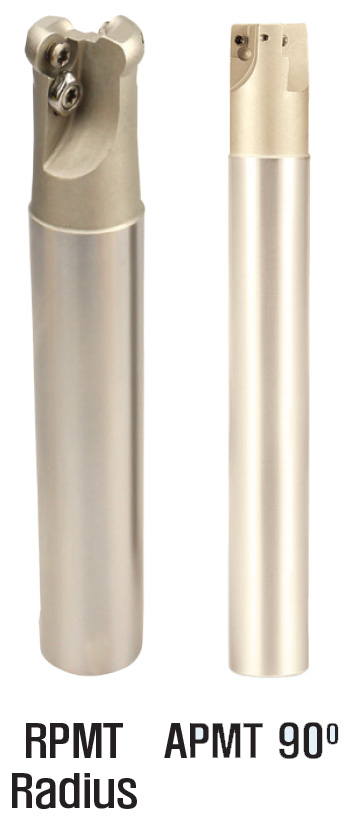

Indexable End Mill Cutters

DIA	LENGTH	SHANK	Z	INSERT				KEY
DIA	LENGTH	SHANK	Z	APMT	SCREW	RPMT	SCREW	KEY
10	120	10	1	1135	M-2.5X6	-	-	T-8
12	130	12	1	1135	M-2.5X6	0802	M-3X8	T-8
16	150/200	16	2	1135	M-2.5X6	0802	M-3X8	T-8
20	150/200	20	2	1135	M-2.5X6	0802	M-3X8	T-8
25	150/200/250	25	2	1135	M-2.5X6	-	-	T-15
25	150/200/250	25	2	1604	M-4X10	1003	M-3.5X8	T-15
32	200/250/300	32	3	1604	M-4X10	1204	M-4X10	T-15
40	250/300	40	3	1604	M-4X10	1204	M-4X10	T-15

Download PDF

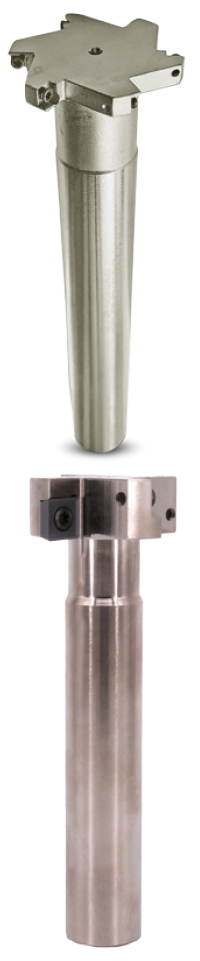

Indexable T-Slot Cutters

DOLPHIN Indexable T slot cutters are made to provide optimum results for T slot applications. With wide range of Diameter and thickness.

DIA	THICK	SHANK DIA	OAL	Z	INSERT
20	6	14	120	2	SPMG04
25	6	16	120	4	SPMG04
35	6	20	150	6	SPMG04
40	6	20	150	6	SPMG04
45	6	25	150	6	SPMG04
50	6	25	150	6	SPMG04
16	8	12	120	2	MPHT060304
20	8	14	120	2	MPHT060304
25	8	16	150	2	MPHT060304
30	8	16	150	4	MPHT060304
35	8	20	150	4	MPHT060304
40	8	20	150	4	MPHT060304
50	8	25	150	4	MPHT060304
60	8	32	150	6	MPHT060304

DIA	THICK	SHANK DIA	OAL	Z	INSERT
70	8	32	150	8	MPHT060304
80	8	32	150	8	MPHT060304
100	8	32	150	8	MPHT060304
40	10	20	150	4	CCMT0604
50	10	25	150	4	CCMT0604
60	10	25	150	6	CCMT0604
40	12	20	150	4	MPHT080305
50	12	20	150	4	MPHT080305
60	12	25	150	6	MPHT080305
70	12	32	150	6	MPHT080305
80	8	32	150	8	MPHT080305
100	12	32	150	8	MPHT080305
50	16	25	150	4	MPHT120408
50	20	25	150	4	MPHT120408
80	20	32	150	6	MPHT120408

Download PDF

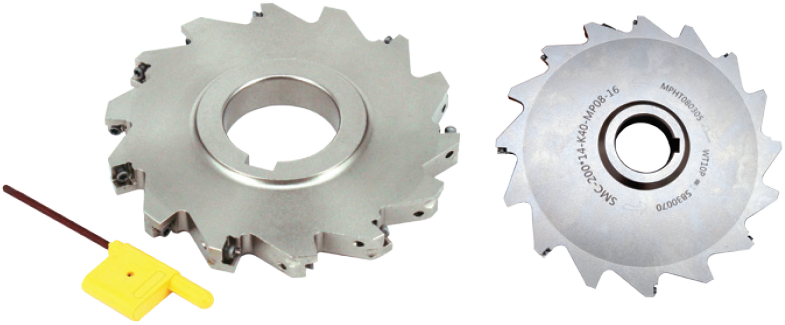

Indexable Side and Face Cutters

DOLPHIN Indexable Side and face cutter are provided with MPHT insert slots which perfect for slotting applications. From Diameter 100 mm to 200 mm and various thickness.

DIA	THICK	BORE	Z	INSERT
100	8	32	14	MPHT060304
100	10	32	14	MPHT060304
125	10	40	14	MPHT060304
125	12	40	12	MPHT080305
125	16	40	10	MPHT120308
160	12	40	14	MPHT120408
160	16	40	12	MPHT120408
160	20	40	12	MPHT120408
200	16	40	14	MPHT120408
200	20	40	14	MPHT120408
